Weighing Load Cell Sensor 5kg with connecting Wires

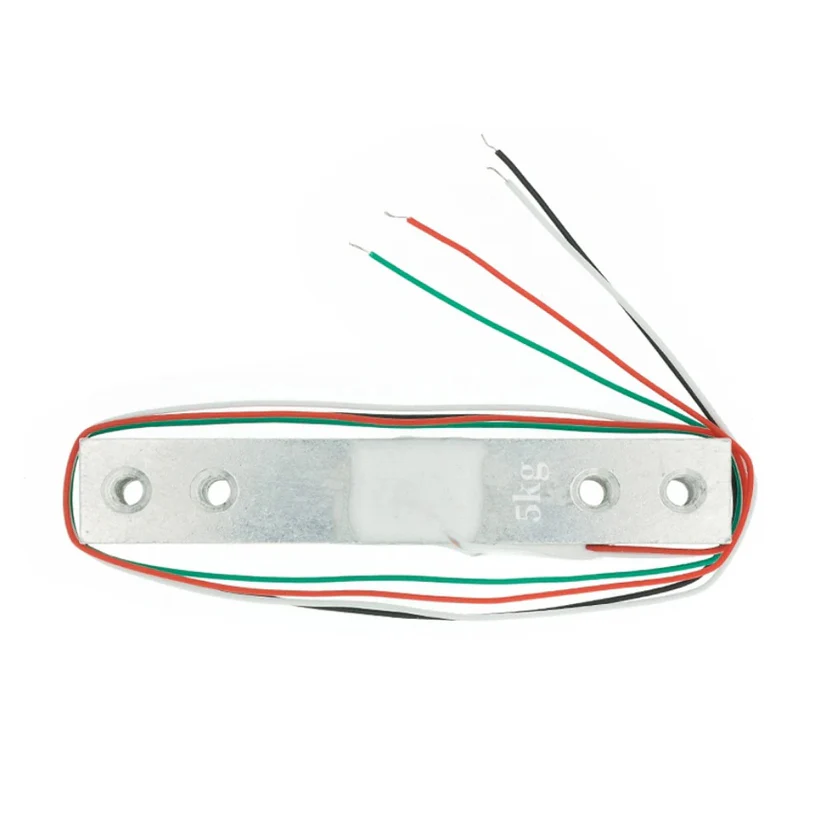

his straight bar load cell (sometimes called a strain gauge) can translate up to 5kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object's weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.
Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 5kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows: Red = Exc+, Green = Sig+, Black = Exc-, and White = Sig-.
It has Four lead wires which can be connected to RJ711 A/D Pressure Sensor. It is easy to use with driving voltage 3 - 5V and produce the output voltage as per the force changes over it. For more details on How to connect the Load cell with the HX711 Module, check out This Guide.
| Material |
Aluminium |
| Range |
0 - 5KG |
| Rated Output |
1.0 ± 0.1mV / V |
| Combined error |
±0.05 %FS |
| Zero balance |
±0.01 %FS |
| Non-linearity |
±0.05 %FS |
| Hysteresis |
±0.05 %FS |
| Repeatability |
±0.05 %FS |
| Product Dimensions |
75 x 13 x 13mm |
| Operating range |
-40°C to +85°C |
| Product Weight |
30 grams |
Features:
- Capacity: 5kg
- Material: Aluminum-Alloy
- Parallel Beam Type
- Fitting ScrewHole Size: M3
- Rated output: 1.0 ± 0.1mV / V
Applications:
- Weighing Scale
- Punching Bag projects

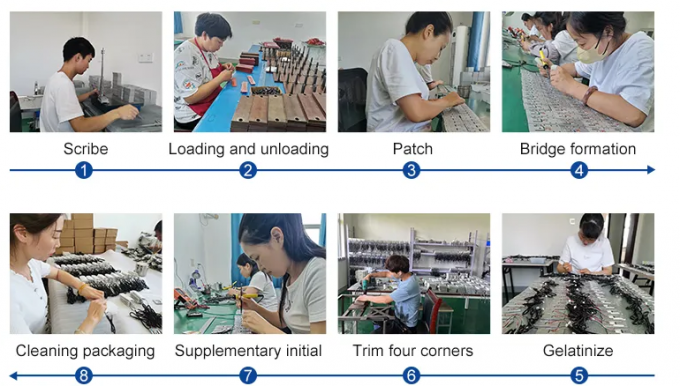

roduction Process

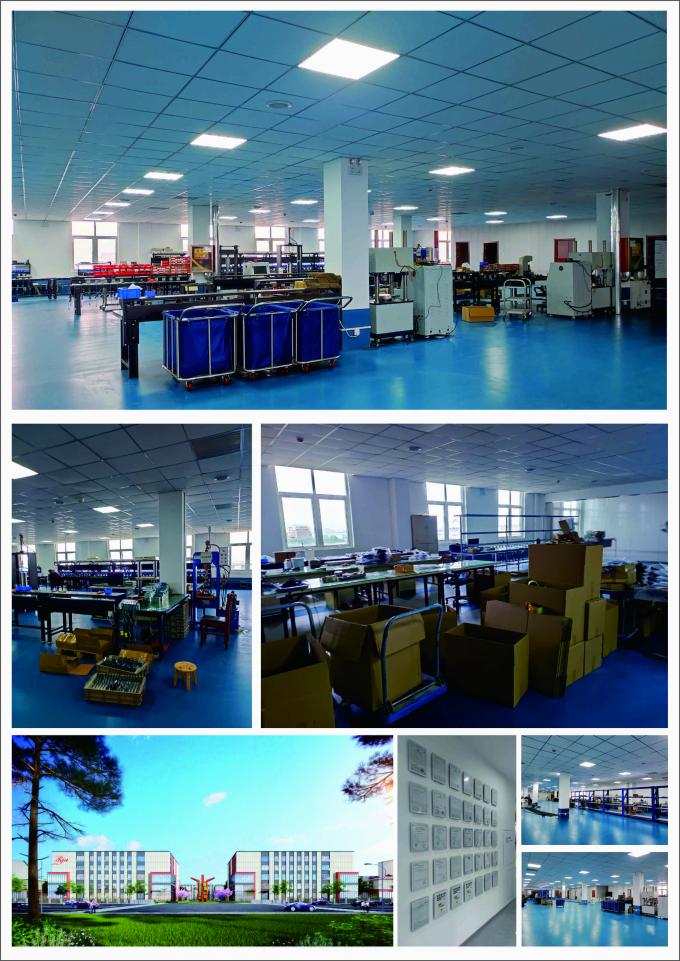

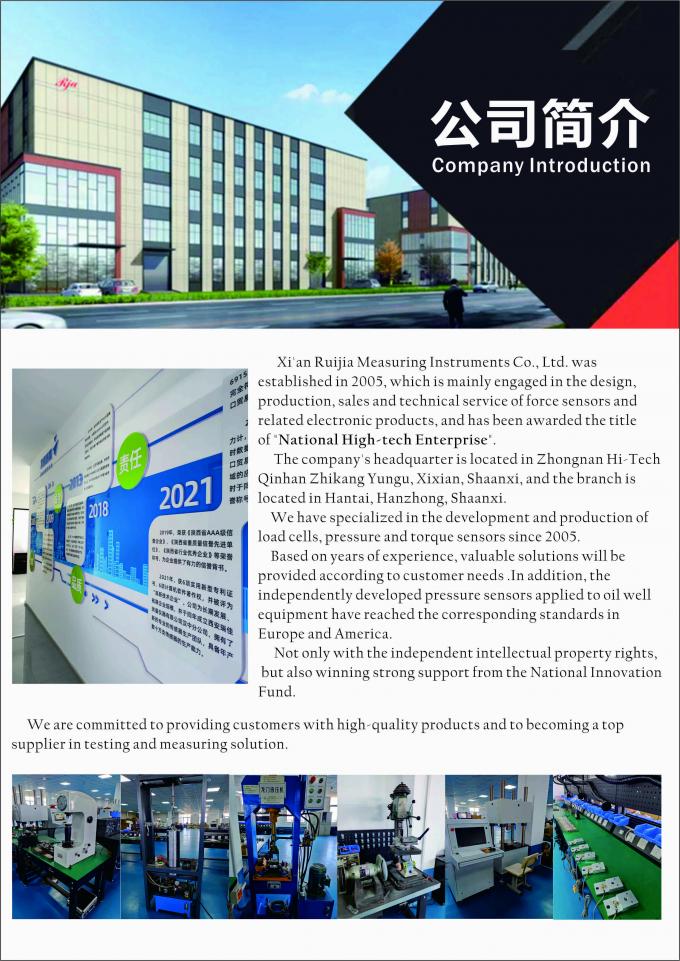

Company Profile
---------------------------------------------------------------
